Car Charger
Description
Description

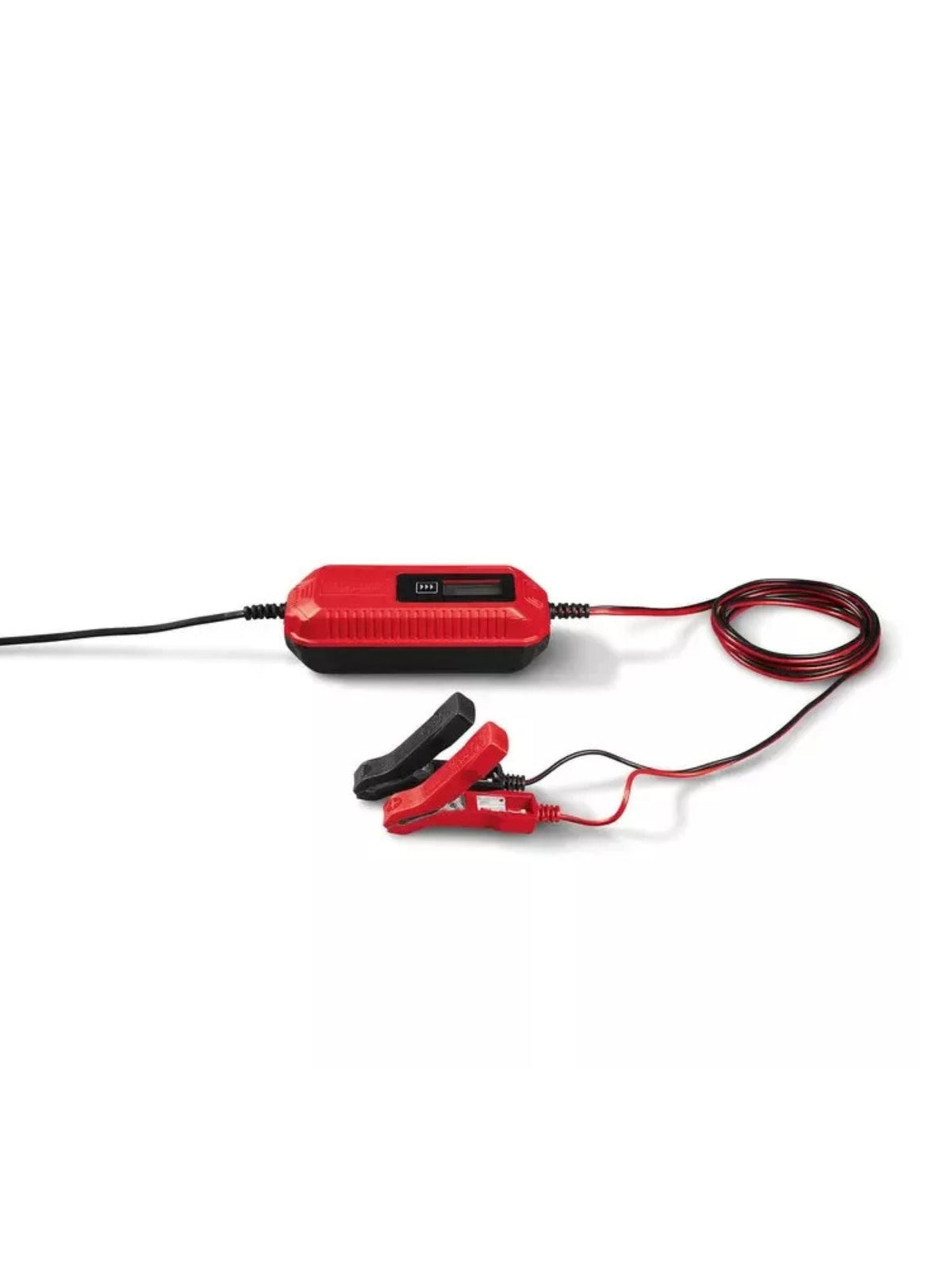

Car Charger
intelligent microprocessor control system with diagnostic program and fully automatic charging
for all 6 V or 12 V batteries with a capacity of 1.2-120 Ah, installed in cars and motorcycles
4 programs for optimal adaptation to the battery type
LED display showing charging programs, voltage value, charge status, reverse polarity warning and standby mode
Pulse charging to reactivate discharged batteries
winter charging mode at low outside temperatures
protection against reverse polarity, short circuit and overload
long-term connection for optimal charge maintenance without sulphate formation
intelligent control of the charging process with 7 charging stages:
1. Reverse polarity protection and diagnostics
2. Regeneration/desulphurization
3. Start charging with high current
4. 80% charge
5. Absorption - 100% charge
6. Charge and maintenance monitoring
7. Top up as needed
charging current: max. 5 A
ambient temperature: -20�C / + 50�C
operating voltage: 230 V ~ 50 Hz
charging principle diagram: program 3 (14.4 V / 5.0 A)
Material: Plastic
Dimensions car charger: approx. 15.61 x 6.15 x 4.58 cm
charging cable length: approx. 2 m (with clamps)
mains cable length: approx. 2 m (with plug)
